ASOLA

Asola 18/30 Ø 700 mm
Compare

WORKABLE MATERIALS: Marble / Limestone

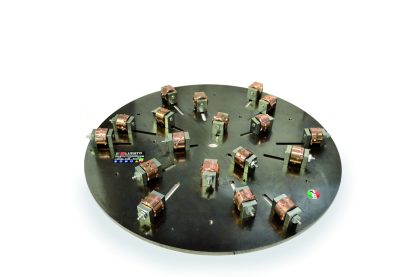

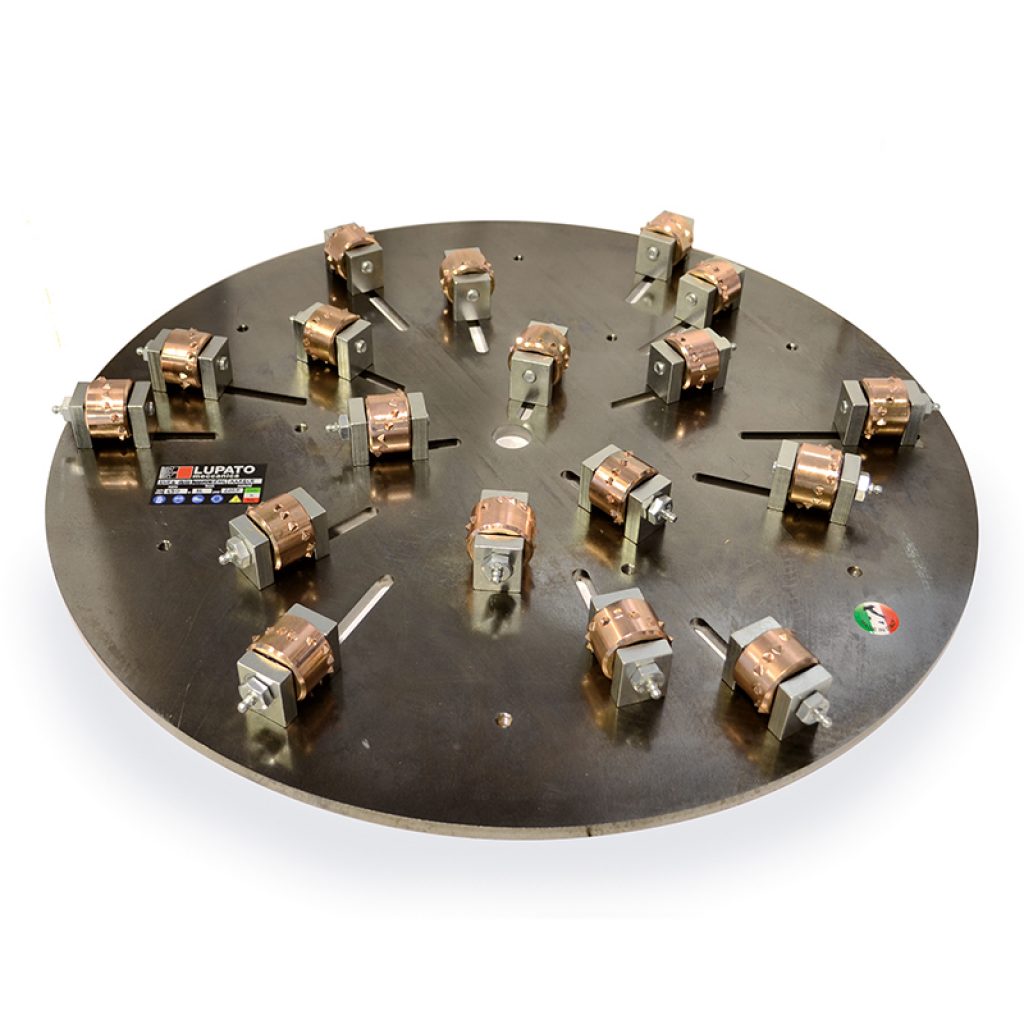

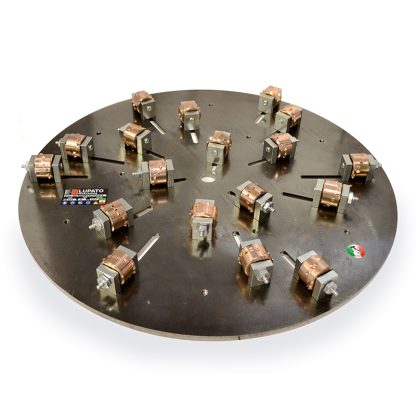

Asola 18/30 is a tool with a dimeter of 700mm made of 18 30-bits rollers, for coarse bushammering finish on marble and limestone tiles. The rollers can be adjusted to different working diameters to allow the execution of the bushammering on tiles in widths between 42 and 62 cm.

Achievable finishes:

Medium bushammering

Hourly output (m2/h):

90

Rotation speed:

Max 750 RPM

Tool diameter:

ø 460 mm

Mass:

36Kg

Technical documents:

Tool sheet IT-ENTool sheet ES-PT

Application:

Asola 18/30 can be fixed on in line automatic polishing machines, whose plate has a diameter between 400 and 750mm. Once the working diameter of the tool has been adjusted based on the width of the tile to bushammer, it is attached to the polishing machine's hold plate and it is worked without the movement of the bridge, according to the parameters in the instruction booklet.

    Strengths:

    By adjusting the working diameter of the tool| it is possible to bushammer tiles of any width without moving the bridge so that a very high feed rate can be used.
